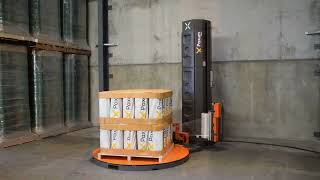

The Paxum® Stretch Wrap Machine X200 with the built in Auto Roping System is the perfect solution for businesses looking for a fast and efficient way to wrap bulk products stacked on pallets. With a pre-stretch ability of 300%, this machine guarantees a significant reduction in plastic film usage, making it an eco-friendly choice for many applications.
One of the key features of the X200 is its automatic film attaching and cutting, which ensures that the wrapping process is completely automated and efficient. The machine also comes with a remote-controlled system that allows operators to control the wrapping process from a distance, minimizing the need for manual intervention.
The X200 is equipped with an automatic photoelectric sensor that detects the height of the pallet, ensuring that the wrapping process is precise and accurate. The digital LCD touch screen control panel makes it easy to operate the machine, giving operators full control over the wrapping process.
An essential feature of the X200 is its film blower and heat sealer, which ensures that there are no film tails left after the wrapping process. The machine is also built-in with an intelligent alarm system with LED indicators that alerts operators in case of any item or carriage drop during the wrapping process.
With a production rate of 30-40 loads per hour and a maximum load weight of 2000kgs, the X200 is an efficient and reliable machine that can handle even the most demanding wrapping requirements. The machine also offers a pre-stretch rate of 300%, making it the perfect choice for businesses looking to reduce their plastic film usage even further.
In conclusion, the Paxum® Stretch Wrap Machine X200 with the built in Roping System is an eco-friendly and efficient solution for businesses looking to wrap bulk products stacked on pallets quickly and reliably. With its advanced features and intelligent alarm system, the X200 is the ideal choice for businesses that value precision, efficiency, and sustainability.
Gateway Packaging also offers a variety of pallet wrapping machines for consideration.
For more information, contact our friendly sales team to learn more about the X200 and start streamlining your packaging process today!
Automatic film attaching and cutting.
The X200 automatic film attaching and cutting pallet wrapper eliminates the need for workers to manually attach and cut the film. The system handles this process seamlessly, improving efficiency and reducing manual labour.
- Safety device under film carriage to protect the foot or head of the operator
- Transparent board makes it easy to find problem without opening door
- Up and down belt deviation and damaged alarm system. Alarming in time to avoid carriage dropping down.
Built-in Auto Roping System
The Built-in Auto Roping System strengthens the film by narrowing it into a rope-like structure, ensuring tighter load containment. This feature enhances pallet stability while reducing film usage for cost-effective wrapping.
- SIEMENSÂ PLC
- SICKÂ proximity switch
- AUTONICS photoelectric switch
- WEIDMULLER terminal block
- SIEMENSÂ Inverter
- OMRON 24DC supply
Remote Controlled System
The remote-controlled system allows operators to start, stop, and adjust wrapping settings from a distance, improving efficiency and safety. This feature minimizes manual handling, streamlining operations for enhanced productivity.
| Model | Paxum® Stretch Wrap Machine — X200 with Roping System |
|---|---|
| Production Rate: | 30-40 loads/hour |
| Turntable Speed : | 3-12RPM(Adjustable) |
| Turntable Diameter : | 1800mm |
| Max. Load Weight: | 2000kgs |
| Std. Wrapping Height: | 2350mm |
| Pre-stretch Rate: | 300% pre-stretch maximum |
| Up & Down Speed: | 1.5 ~5.5 m/mins |
| Voltage: | 240V |
| Machine weight: | 750kg |
| Machine size: | L2710mm*W1800mm*H2740mm |
| Film Spec: | 500mm wide, 250mm diameter, 76mm core diameter |
| PLC: | Siemens |
| Compressed Air: | Yes - Minimum 30 psi |
| Technical Data: | Operation Manual |
| Extra Options: | Weighing Scales Ramp |
| Warranty: | 3 Years |
Stretch Wrap Machine X200 with Roping System
CODE: 62213RSAdvanced pallet wrapper with built-in roping for load stability.
Introducing our new Paxum® X200 Fully Automatic Pallet Stretch Wrapping Machine with built in roping system. Designed for fast and efficient wrapping of bulk product stacked on pallets. With Pre-stretch ability of 300%, this machine guarantees a reduction in plastic film usage and is the ideal solution for many applications.
 Features.
- Built-in Auto Roping System.
- Automatic film attaching and cutting.
- Remote Controlled System.
- Automatic Photoelectric Sensor detects pallet height.
- Digital LCD touch screen control panel.
- Film Blower and Heat Sealer for ensure no film tails.
- Intelligent Alarm System with LED Indicator.
- Alarming system alerts for any item or carriage drop.
- Warranty: 3 years
Note: This machine requires air compressor to operate the cutting & sealing functions.
Optional Extras:
- Ramp # 62213-RÂ
- Photocell Sensor for Black Stretch Wrap
Our Paxum® X200 is a reliable, efficient, and cost-effective solution for many applications. Contact us today to learn more about how our Paxum® Stretch Wrap Machine X200 can help your business.
