The Paxum® X200 Fully Automatic Stretch Wrap Machine streamlines pallet wrapping by automatically attaching, wrapping, cutting, and sealing film. With a 300% pre-stretch capability, it significantly reduces film consumption, labour time, and waste, boosting productivity and cost efficiency across packaging lines.
What is the estimated delivery duration for my order?
We provide same-day dispatch for available items if ordered before 2:30 p.m.*
Metropolitan Area
| Sydney | 1-2 Business Days |
| Melbourne | 1-2 Business Days |
| Adelaide | 1-2 Business Days |
| Brisbane | 1-3 Business Days |
Perth
| Perth | 5-7 Business Days |
Regional Area
| Victoria | 2-3 Business Days |
| Queensland | 2-3 Business Days |
| South Australia | 2-3 Business Days |
| New South Wales | 2-3 Business Days |
| ACT | 2-3 Business Days |
Northern Territory
| Northern Territory | 5-7 Business Days |
Tasmania & Western Australia*
| Tasmania & Western Australia* | 5-7 Business Days |
*Same-day dispatch is not available for products sourced upon request, including machinery and equipment.
It's important to note that there will be a lead time for these items, depending on their availability.
*Attention to our valued customers in Western Australia: To ensure consistent availability of your requested items, please note a potential lead time of 5-7 days for orders shipped from our Victorian warehouses.

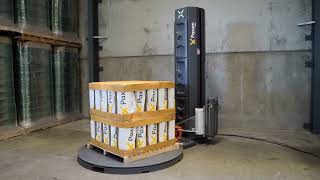

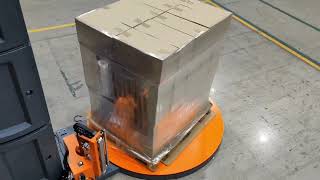

The Paxum® Stretch Wrap Machine X200 with cut and Seal device is the perfect solution for businesses looking for a fast and efficient way to wrap bulk products stacked on pallets. With a pre-stretch ability of 300%, this machine guarantees a significant reduction in plastic film usage, making it an eco-friendly choice for many applications.
One of the key features of the X200 is its automatic film attaching and cutting, which ensures that the wrapping process is completely automated and efficient. The machine also comes with a remote-controlled system that allows operators to control the wrapping process from a distance, minimizing the need for manual intervention.
The X200 is equipped with an automatic photoelectric sensor that detects the height of the pallet, ensuring that the wrapping process is precise and accurate. The digital LCD touch screen control panel makes it easy to operate the machine, giving operators full control over the wrapping process.
An essential feature of the X200 is its film blower and heat sealer, which ensures that there is no film tails left after the wrapping process. The machine is also built-in with an intelligent alarm system with LED indicators that alerts operators in case of any item or carriage drop during the wrapping process.
With a production rate of 30-40 loads per hour and a maximum load weight of 2000kgs, the X200 is an efficient and reliable machine that can handle even the most demanding wrapping requirements. The machine also offers a pre-stretch rate of 300%, making it the perfect choice for businesses looking to reduce their plastic film usage even further.
In conclusion, the Paxum® Stretch Wrap Machine X200 with cut and seal is an eco-friendly and efficient solution for businesses looking to wrap bulk products stacked on pallets quickly and reliably. With its advanced features and intelligent alarm system, the X200 is the ideal choice for businesses that value precision, efficiency, and sustainability.
Gateway Packaging also offers a variety of pallet wrapping machines for consideration.
For more information, contact our friendly sales team to learn more about the X200 and start streamlining your packaging process today!
High Pre-Stretch Rate
Optimize the use of stretch film with up to 300% pre-stretch, maximizing the efficiency of each meter. This system ensures consistent film release, precise fixed-point wrapping, and controlled, quantitative use, delivering cost-effective and reliable performance.
Automatic Cut & Clamp Film System
This welded-type system eliminates the need for operators to manually cut and apply the film to the pallet. The cut and clamp system automates the process, ensuring a smooth, seamless wrap without leaving a film tail—no brush required for clean, precise results after every wrap cycle.
When investing in a durable machine, the quality of electrical parts is critical. Using low-quality electrical components poses a significant risk, as a single malfunctioning part can cause the entire machine to stop working. Additionally, troubleshooting faulty electrical parts can be difficult, as it’s often unclear which specific part is broken. That’s why our X200 pallet stretch wrapping machines are equipped with high-quality, well-known brand electrical components. This ensures long-lasting performance and minimizes the risk of breakdowns due to electrical failures, providing reliable, hassle-free operation over time.
The X200 pallet wrapping machine features a top-tier IoT intelligent touch screen for seamless operation and optimal responsiveness. With direct control over key settings like turntable speed, up/down speed, and film carriage speed, users can easily customize the machine to fit their needs. Additionally, six pre-programmed wrapping modes allow customers to set specific parameters for different pallet types just once. After that, simply select the appropriate mode for each pallet, eliminating the need for manual adjustments every time.
Remote Control System
The X200 pallet wrapping machine is easily operated by remote control, allowing users to start and pause the machine with ease. This feature enhances convenience, providing simple control with just the push of a button—no need to be near the machine for operation.
| Model | Paxum® Stretch Wrap Machine X200 with Welding |
|---|---|
| Production Rate: | 30-40 loads/hour |
| Turntable Speed: | 3-12RPM(Adjustable) |
| Turntable Diameter: | 1800mm |
| Max. Load Weight: | 2000kgs |
| Std. Wrapping Height: : | 2350mm |
| Pre-stretch Rate: | 300% pre-stretch maximum |
| Up & Down Speed: | 1.5 ~5.5 m/mins |
| Voltage: | 240V |
| Machine weight: | 750kg |
| Machine size: | L2710mm*W1800mm*H2740mm |
| Film Spec: | 500mm wide, 250mm diameter, 76mm core diameter |
| PLC: | Siemens |
| Compressed Air: | Yes - Minimum 30 psi |
| Technical Data: | Operation Manual |
| Extra Options: | Weighing Scales Ramp |
| Warranty: | 3 Years |
Paxum® Stretch Wrap Machine - X200 with Cut & Seal
CODE: 62213WClean, secure wraps with automatic cut and seal technology.
Introducing our new Paxum® Fully-Automatic Stretch Wrap Machine – X200 with Cut & Seal Device. Designed for fast and efficient wrapping of bulk product stacked on pallets. With Pre-stretch ability of 300%, this machine guarantees a reduction in plastic film usage and is the ideal solution for many applications.
Features.
- Automatic film attaching and cutting.
- No film tails after wrapping
- Remote control operation
- Automatic pallet height detection
- LCD touch screen control
- Film blower and heat sealer
- Smart LED alarm system
- Drop alert system
- Warranty: 3 years
Note: This machine requires air compressor to operate the cutting & sealing functions.
Optional Extras:
- Ramp # 62213-R
- Photocell Sensor for Black Stretch Wrap
Please check the Specifications & Downloads below for brochures, SOPs & user guide manuals.
Calculate my ROI
Contact us today to learn more about how our Paxum® Fully-Automatic Stretch Wrap Machine – X200 with cut & seal can help your business.
Same Day Despatch
Hours
Minutes
Seconds
left
Same Day Despatch is guaranteed for all orders on stocked lines placed before 2pm AEST on business days.
Related Products
Frequently Asked Questions
-
How can the Paxum® X200 Stretch Wrap Machine improve packaging efficiency for my business?
-
What makes the Paxum® X200 different from standard pallet wrapping machines?
Unlike semi-automatic models, the Paxum® X200 with Cut & Seal System automates the entire wrapping process. Its automatic cut-and-clamp device eliminates manual film handling, ensuring clean, tail-free wraps and consistent load containment for a professional finish every time.
-
How does the Paxum® Stretch Wrapper’s pre-stretch system benefit businesses?
The high pre-stretch rate of up to 300% optimises film usage by stretching each metre of film further, lowering material costs and environmental impact. This ensures uniform tension and reliable film application across every pallet, even in high-volume operations.
-
What control and safety features does the X200 Stretch Wrap Machine include?
The machine includes a Siemens PLC control system, LCD touch-screen interface, and remote control operation for ease of use. Safety features such as a smart LED alarm, drop alert system, and film blower with heat sealer ensure smooth, safe, and reliable operation in busy industrial settings.
-
Is the Paxum® X200 pallet wrapping machine easy to operate and maintain?
Yes. Designed with user convenience in mind, the intelligent touch-screen interface provides six pre-programmed wrapping modes and adjustable parameters. Its all-electric, low-maintenance design and use of high-quality Siemens components ensure long-term reliability and minimal downtime.
-
