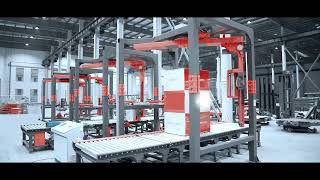

  • Paxum® Fully Automatic Pallet Wrapping Machine - Rotary Arm - T1000 video 1

What is the estimated delivery duration for my order?

We provide same-day dispatch for available items if ordered before 2:30 p.m.*

Metropolitan Area

Sydney 1-2 Business Days
Melbourne 1-2 Business Days
Adelaide 1-2 Business Days
Brisbane 1-3 Business Days

Perth

Perth 5-7 Business Days

Regional Area

Victoria 2-3 Business Days
Queensland 2-3 Business Days
South Australia 2-3 Business Days
New South Wales 2-3 Business Days
ACT 2-3 Business Days

Northern Territory

Northern Territory 5-7 Business Days

Tasmania & Western Australia*

Tasmania & Western Australia* 5-7 Business Days

*Same-day dispatch is not available for products sourced upon request, including machinery and equipment.

It's important to note that there will be a lead time for these items, depending on their availability.

*Attention to our valued customers in Western Australia: To ensure consistent availability of your requested items, please note a potential lead time of 5-7 days for orders shipped from our Victorian warehouses.

Welcome to Gateway Packaging! Enhance your packaging process with our cutting-edge T1000 Paxum® model, the ultimate Fully Automatic Pallet Wrapping Machine designed specifically for industrial applications. With advanced features and state-of-the-art technology, this machine guarantees exceptional efficiency and performance to meet all your packaging needs.

The standout feature of the Paxum® X1000 is its impressive wrapping speed, capable of efficiently wrapping 30-35 pallets per hour. This ensures that your packaging process is completed quickly and without compromising quality. Say goodbye to manual intervention with the machine’s auto film cutting and clamping system, providing a seamless wrapping experience.

For added convenience and enhanced packaging quality, the Paxum® X1000 offers an optional automatic top sheet dispenser and cardboard corner fixer. These features further streamline your packaging process, providing optimal convenience and ensuring that your products are securely packaged.

Equipped with a SEW & SIEMENS motor drive system, the Paxum® X1000 offers advanced performance and reliability. Enjoy a noiseless operation, creating a pleasant working environment for your employees. The maximum pre-stretch rate of up to 400% guarantees the optimal utilization of stretch film, reducing costs and maximizing efficiency.

Our pallet wrapping machine features a slewing bearing transmission, enabling it to handle 35-40 loads per hour without the need for additional counterweights. This results in high efficiency, noiseless operation, and minimal maintenance requirements. The Rotary Arm design of the Paxum® X1000 ensures a more powerful film-clamping effect and precise cylinder film-cutting, providing secure packaging for your products.

We have equipped the machine with high-quality spare parts, including the SICK proximity switch and photoelectric sensor for reliable and accurate detection. The Weidmuller terminal board allows for convenient connectivity, while the SIEMENS PLC and Inverters offer advanced control and efficiency.

In terms of cost savings, the Paxum® X1000 achieves an impressive pre-stretch rate of up to 400%, maximizing the value of each meter of stretch film. With standard constant releasing film and precise fixed-pointed wrapping, this machine ensures efficient and cost-effective packaging without compromising on quality.

Gateway Packaging also offers a wide variety of pallet wrapping machines and machine stretch films.

For more information, contact friendly sales team for expert advice.

High Efficiency

Transmission: slewing bearing
35-40 loads per hour
Quiet operation with long service life
Maintenance-free, no additional counterweight required

More Powerful

Mechanical filming way

100% film-clamping effect

Cylinder film-cutting

Save Cost

Maximum up to 400% pre-stretch rate
Minimum the value of each meter of stretch film
Standard constant releasing film
Fixed-pointed wrapping quantitative use film

Better spare parts

SICK proximity switch, photoelectric sensor

Weidmuller terminal board

SIEMENS PLC

SIEMENS Inverters

ModelRotary Arm - T1000
Maximum Wrapping Speed: 35-40 loads/hour
Max Pallet Size: 1.2x1.2m
Maximum Wrapping Height : 2000mm
Ring Speed : 0-30RPM (Adjustable)
Ring Size : 2000mm
Ring Drive Power : 1.5PH
Cut And Clamp Film : Automatic (Heat type)
Standard Film Width : 500mm
Pre-Stretch Rate: Up to 400%
Constant Film Delivery Force: Standard
Film Capacity : Diameter: 250mm
Top Pressure Function: Optional
Lifting Up Conveyor: Optional
Top Sheet Dispenser: Optional
Cardboard Corner Fixer : Optional
Machine Size : 3825*2900*3940mm
Machine Weight: 2000KG
Voltage: 380V/60HZ
Frame: Steel
Printing: Metallic Paint
Cutting: Laser
Inverter: SIEMENS
Position Sensor: SICK
PLC: SIEMENS
Travel Switch: OMRON
Ring Drive Motor: JSK
Relay: OMRON
Touch screen: SIEMENS
Switch: Schneider
Cylinder: AIRTAC
Up and Down Motor: JSK
Warranty: 3 years

Pallet-Wrapping-Machines-2025-All-Machines-in-one-brochure.pdf Paxum-T1000-Brochure.pdf

Paxum® Fully Automatic Pallet Wrapping Machine - Rotary Arm - T1000

CODE: 62215

Industrial-Grade Wrapping Power – Fully Automatic Rotary Arm System with 400% Pre-Stretch & Up to 35 Pallets per Hour

Welcome to Gateway Packaging, where we present the T1000 Paxum® model a Fully Automatic Pallet Wrapping Machine. Designed for industrial applications, this cutting-edge machine offers exceptional efficiency and performance for your packaging needs. With advanced features and reliable technology, it is the ultimate solution to optimize your pallet wrapping process.

  •  Impressive wrapping speed: 30-35 pallets per hour
  • Auto film cutting and clamping
  • Automatic top sheet dispenser (optional)
  • Automatic cardboard corner fixer (optional)
  • SEW & SIEMENS motor drive system
  • Advanced photoelectric sensor
  • Noiseless operation
  • Maximum pre-stretch rate of up to 400%
  • Warranty: 3 years

Optional Extras:

  • Photocell Sensor for Black Stretch Wrap

 Take your packaging efficiency to new heights with our Paxum® Fully Automatic Pallet Wrapping machine X1000.

Please check the Specifications & Downloads below for brochures, SOPs & user guide manuals.
$ Calculate my ROI

Contact us today to learn about how our Paxum® T1000 Fully Automatic Pallet Wrapping Machine - Rotary Arm can help your business.
