X5 pallet wrapping machine mast height is 2650mm, and the max packing height  is 2400mm, if you pallet over 2400mm, you need to choose a mast height of 3400mm, and the max packing height is 3200mm
- High efficiency and low electricity-consumption, convenient in operation.
- The wrapping type and times can be designed on customers’ requirements.
- Photoelectric sensor test pallet height automatic
- Auto reset of turn table
- Pre-stretch ratio: 300%
- Programmable control and frequency converter is available.
- PLC control, manual optional. Wrap cycle (top, bottom, reinforcement) adjustment.Variable lift speed/ film tension control. Film up/down controls.
- Pallet stretch wrapping machine soft start and soft stop.
- Pallet Stretch Wrapper is suitable for Light pallets
- Automatic cut film function

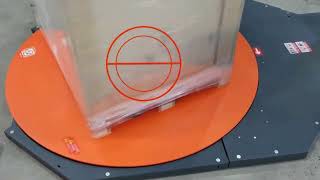

- E type turntable ,easy for pallet jack load the pallet on machine
E Type Turntable StretchÂ
Our turntable wrapping machine prioritizes forklift convenience, with E-type pallet wrapping turntables that perfectly fit the shape of forklifts. This ensures easy operation for forklift workers and wrappers, reducing labor costs and boosting production efficiency.Â
Muti-layer FunctionÂ
The stretch wrapper function revolutionizes the packaging process by allowing you to customize the wrapping circles and force at any desired height. Unlike traditional wrapping machines, it overcomes limitations by enabling up to 9 layers for pallets, ensuring reinforced wrapping and eliminating issues like uniform force and continuous operation. Â
Better Spare PartsÂ
 Advanced control with SIEMENS PLC.Â
Accurate sensing with SICK proximity switch.Â
Reliable operation with AUTONICS photoelectric switch.Â
Secure electrical connections with WEIDMULLER terminal block.Â
Efficient power management with SIEMENS Inverter.Â
Reliable performance with OMRON 24DC supply.
Saving Film ConsumptionÂ
The pre-stretch feature of our turntable pallet wrapping machine allows for maximum wrapping efficiency and minimal film waste. By utilizing multiple rubber rolls that rotate at different speeds, the film is stretched to 300% of its original length, reducing the material needed. This results in maximizing the value of each meter of stretch film, using standard constant releasing film, and enabling fixed-point wrapping and quantitative film usage.Â
Automatic Cut FilmÂ
 As the Turntable Pallet Wrapper operates, its blade cuts a small hole in the film. The machine then pulls and tears the film through the hole, securely attaching it to the pallet. After completing the wrapping, the machine pauses, awaiting the next task.Â
Intelligent operation Guiding systemÂ
 LED indicator on X5 Turntable Stretch Wrapper: Blue for readiness, green during operation, and red for alarms.Â
User-friendly touch screen: Guides operation and provides solutions for alarms.Â
| Model | Smart Wasp X5 | Spare Parts | Brand |
|---|---|---|---|
| Feature: | E Shape Turntable | Inverter | SIEMENS |
| Maximum wrapping speed : | 15-25 loads/hour | Photoelectric sensor | SICK(Germany) |
| Max Wrapping Height  : | 2400mm/2800mm optional | PLC | SIEMENS(Germany) |
| Turntable Speed: | 0-12RPM(Adjustable) | Travel Switch | Travel Switch |
| Turntable Size  : | 1650mm | Motor | GPG(Taiwan) |
| Turntable Drive : | 0.75PH Wheel Drive | Relay | OMRON(Japan) |
| Cut And Clamp Film: | Cut And Clamp Film | Reducer | GPG |
| Machine Size : | L:2700mm  W:1650mm H:2675m | Touch screen | SIEMENS 7inch/X-LINE |
| Machine Weight  : | 850KG | Position switch | OMRON(Japan) |
| Standard Pre-Stretch : | 300% pre-stretch | Turntable Roller | Double Nylon Roller  |
| Film Capacity : | 250mm Diameter | Up&Down Drive  | Belt |
| Standard Film Width : | 500mm | Up&Down Guidewa | Double Balance Device |
| Max Load Weight : | 800KG | Special Process | Introduction |
| Packing Force : | Changeable | Frame | Steel+ABS |
| pre-stretch Rate : | 300% | Printing | Metallic Paint |
| Voltage: | 220V/110V/50HZ | Fall-proof  | Inside Safety Belt |
| Safety Device : | Have | Cutting | Laser |
| Alarm System : | Have | ||
| Weighing Scale : | Not available | ||
| Pallet Jack For Size : | 1200*750mm | ||
Paxum Pallet Wrapping Machine X5 - Standard Model - E Type Turntable
CODE: 62119Introducing our cutting-edge Paxum Pallet Wrapping Machine - X5 Model Standard with E Type Turntable, the ultimate solution for efficient and reliable pallet wrapping. With its innovative features and robust design, this machine sets a new standard in packaging technology. Discover the key features that set our machine apart:Â
- E Type Turntable Â
- Multi-layer function Â
- High-quality spare parts Â
- Film-saving pre-stretch featureÂ
- Automatic film cutting Â
- 300% pre-stretch rateÂ
- Intelligent operation guiding system with LED indicatorÂ
- Programmable control and frequency converter Â
Experience increased productivity, reduced costs, and superior packaging results with our Paxum Pallet Wrapping Machine. Maximize efficiency and protect your products with ease.
Contact us today to explore how our machine can meet your unique packaging needs.
Same Day Despatch
Hours
Minutes
Seconds
left
Same Day Despatch is guaranteed for all orders on stocked lines placed before 2pm AEST on business days.
Related Products
Frequently Asked Questions
-
What‘s the max height of the pallet stretch wrapper?
-
How to choose a control system?
X5 pallet wrapping machines all use the Siemens control system. Top-brand spare parts ensure a longer machine lifespan.
-
What's the turntable size?
The standard turntable size of the stretch wrapping machine is 1650mm – 1800 mm
-
What temperature can be used?
Standard pallet stretch wrappers require an angle greater than 0 degrees. If the angle is less than 0 degrees, please inform us, as we will need to use a special motor for the machine.
-
What‘s the max height of the pallet stretch wrapper?
The pallet stretch wrapper needs to lift over 150mm
-
What's the max weight that can be used?
Our standard pallet stretch wrapper max load weight of 800KG, more than 800KG, please choose the X100 model or X1
-
Dose X5 stretch wrapping machine can add a ramp and weighing scale?
Yes, a ramp and weighing scale can put be added on X5.
-
Does the stretch wrapping machine need an air compressor for the machine?
No, it doesn’t.
-
What is a semi-automatic turntable pallet wrapper?
A semi-automatic stretch wrapper can increase the efficiency of your wrapping process. Although it still requires an operator, it can significantly reduce the time required to wrap trays compared to your current manual stretch wrapping machine.
Fully automatic stretch wrappers, on the other hand, fully automate the wrapping operation without any human intervention. Stretch Wrapping Machines help to ensure that an efficient and professional wrapping job is carried out every time. Once completed, the film is automatically cut and sealed onto the package.
-
How do semi-automatic pallet wrappers work?
Once the operator has loaded the turntable, applied the film and pressed the start button, the pallet stretch wrapper will automatically begin the wrapping process. Built-in sensors will determine the height of the load and then wrap it evenly from top to bottom. The result is a repeatable process that helps to ensure the product reaches your customer in the same condition as it was intended.
